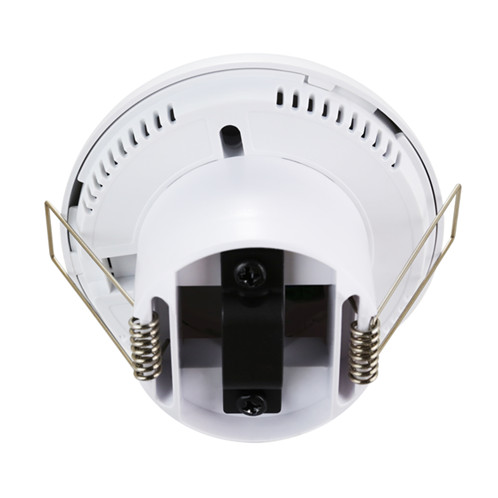

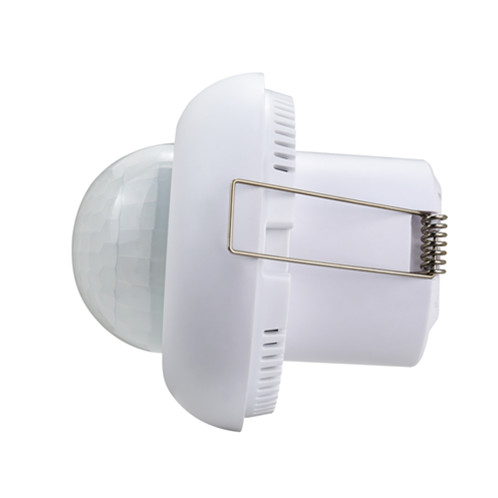

HDL Sensor PIR & Lux Reccess Mount M/IS05.1

Order Code: 22327

Stock Level: Good

Price: €96.₀₀

Includes Motion sensor, LUX sensor and External Telegram Detection
Motion detection range H:3m D:9m
With 2CH lighting control, 4 levels of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
With 2CH constant brightness control, 4 pre-set dimming values are supported and forced dimming can be set
The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
Logic inputs: PIR sensor status, brightness value, temperature and external telegrams
2 logical relations: AND, OR 2 working modes: Single mode and master/slave mode
The logic validity can be set by external telegram

External Environment
