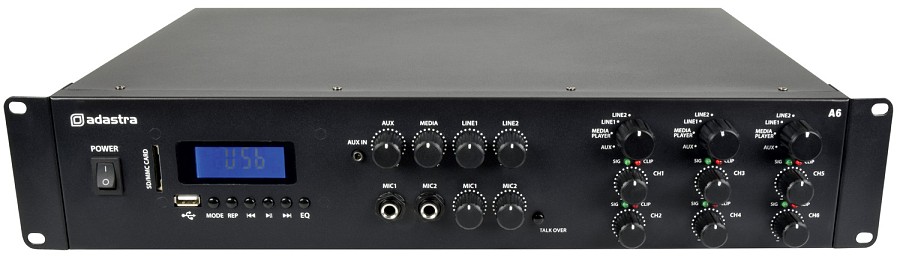

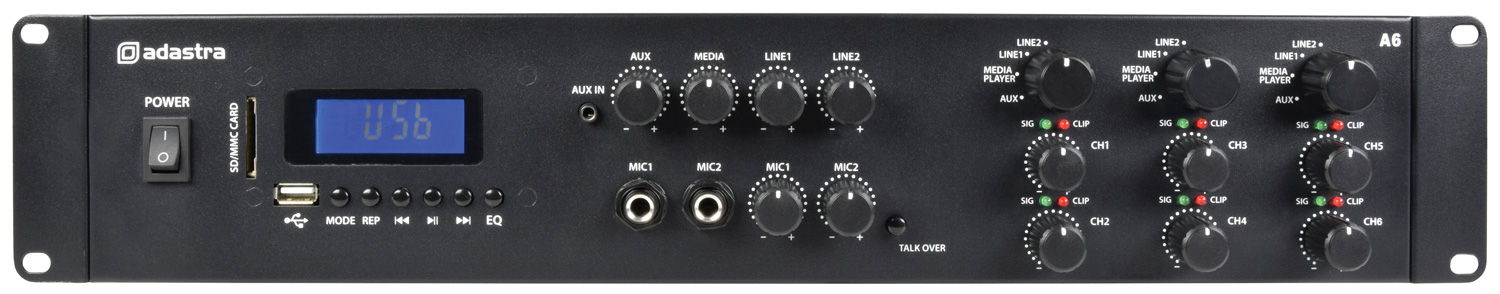

Multi-zone amplifier with 2 microphone inputs and a switchable stereo input for each zone
An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner
A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player
Mic inputs 1 and 2 are live to all output zones at all times
Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms
Designed for installations requiring high quality stereo sound in multiple rooms or listening areas
Line output: 6 x RCA
Output power rms @ 4 Ohms: 6 x 200W
Output power rms @ 8 Ohms: 6 x 100W
Speaker outputs: 3 x 4-terminal Euroblock
Output controls: 3 x source select, Ch1 - Ch6 level
Power supply: 230Vac, 50Hz (IEC)
Fuse: F5A, 250V
Amplifier : Construction Class D
Frequency response: 20Hz - 20kHz ±0.5dB
Microphone inputs: 2 x 6.3mm jack (mono)
Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
