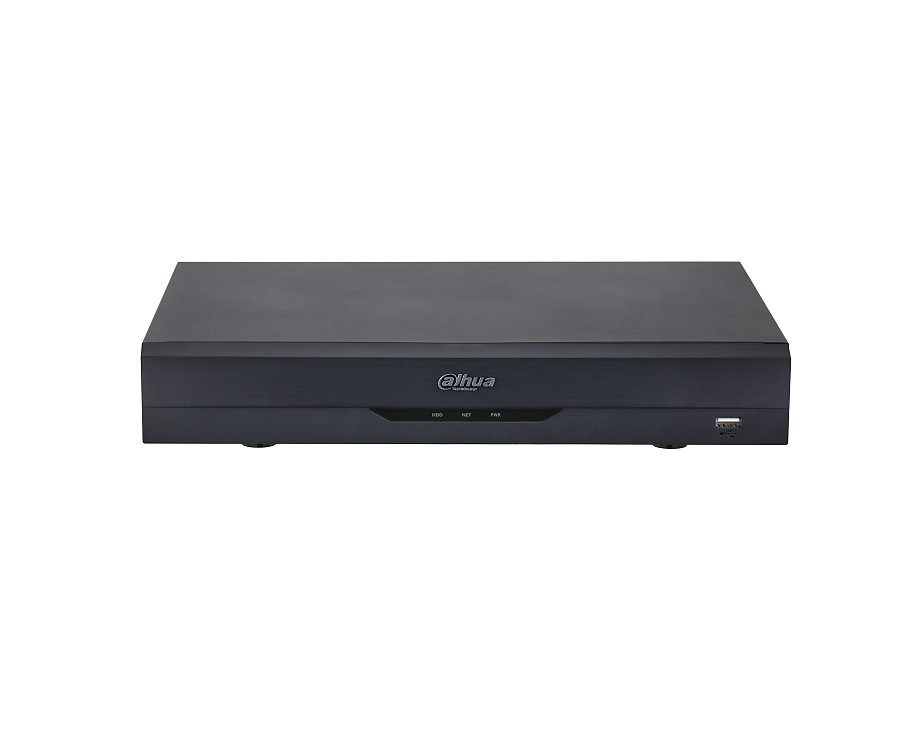

Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3

Order Code: 23026

DVR Channels: 4
DVR Protocols: HDCVI/AHD/TVI/CVBS/IP
HDD: 1 Disk Up to 10TB
Max Record Resolution: CH01-04: 4K
Max Recording Rate: All channel 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub steram:960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)

Stock Level: Good

Price €236.₀₀

Promo Price(Online only) €145.₀₀until 31/12/2025

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities

System

Perimeter Protection

Performance : 1 channel, 10 IVS for each channel
Object classification : Human/Vehicle secondary recognition for tripwire and intrusion
AI Search : Search by target classification (Human, Vehicle)

Face Detection

Performance : Max 8 face pictures/sec processing / 1 channel video stream face recognition, only support analog camera
Stranger Mode : Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search : Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management : Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application : Each database can be applied to video channels independently .
Trigger Events : Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

Video and Audio

Recording

Compression: AI Coding/H.265+/H.265/H.264+/H.264
Resolution: 4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate: Main stream: 4K(1~7fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps);Sub steram:960H(1~15fps);;D1/CIF/QCIF(1~25/30fps)
Bit Rate: 1Kbps ~ 6144Kbps Per Channel
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression : AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate : 8 KHz, 16 bit Per Channel
Audio Bit Rate : 64 Kbps Per Channel

Display

Interface: 1 HDMI, 1 VGA
Resolution: HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768; VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display: When IP extension mode not enabled: 16CH: 1/4/8/9/16; When IP extension mode enabled: 16CH: 1/4/8/9/16/25
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface: 1 RJ-45 Port (1000M)
Network Function: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input: N/A
Relay Output: N/A

Playback and Backup

Playback: 4CH: 1/4
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network

Storage

Auxiliary Interface

Electrical

Construction

Environmental

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications
