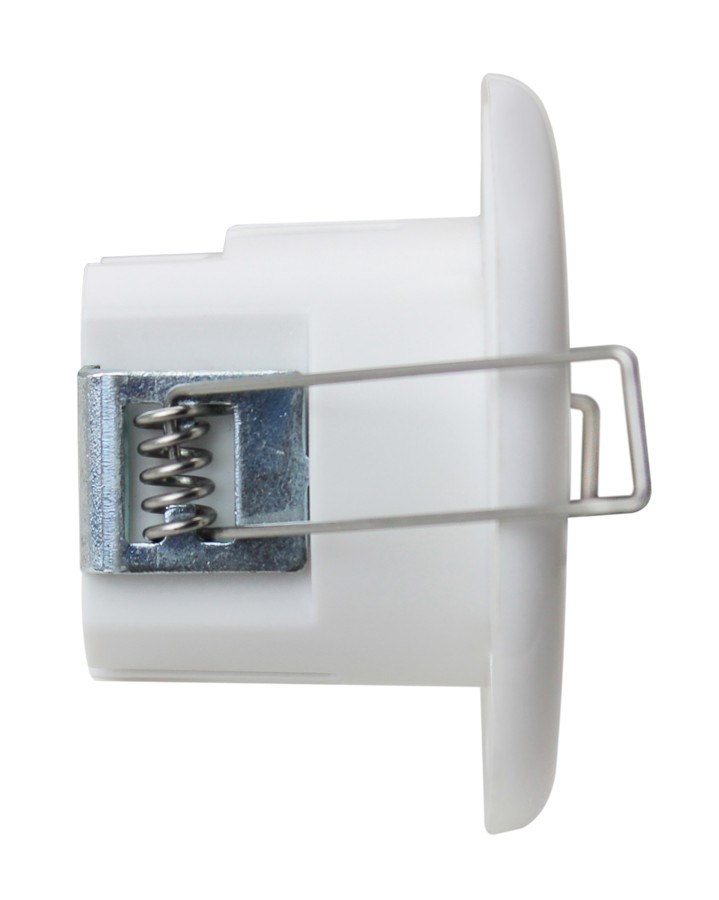

HDL Reccess Mount Ultrasonic Sensor M/US05.1

Order Code: 23157

Order Code: 23157

Stock Level: Good

Price €110.₀₀

Promo Price(Online only) €79.₀₀

Ceiling Mount Ultrasonic Sensor, includes ultrasonic sensor, Lux sensor and external telegram functions,ultrasonic detection range H:3m D:8m.

With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
With 2CH constant brightness control, dimming values and forced operation can be set.
The sensor has 5 logic blocks and each block contains 10 object outputs. Telegram locking/unlocking and delay time can be set.
Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
Logic inputs: Ultrasonic sensing status, brightness value, temperature and external telegrams.
2 logical relations: AND, OR
2 working modes: Single mode and master / slave mode.
The logic validity can be set by external telegram so as to ensure that end users can reset the logics.
