Dahua

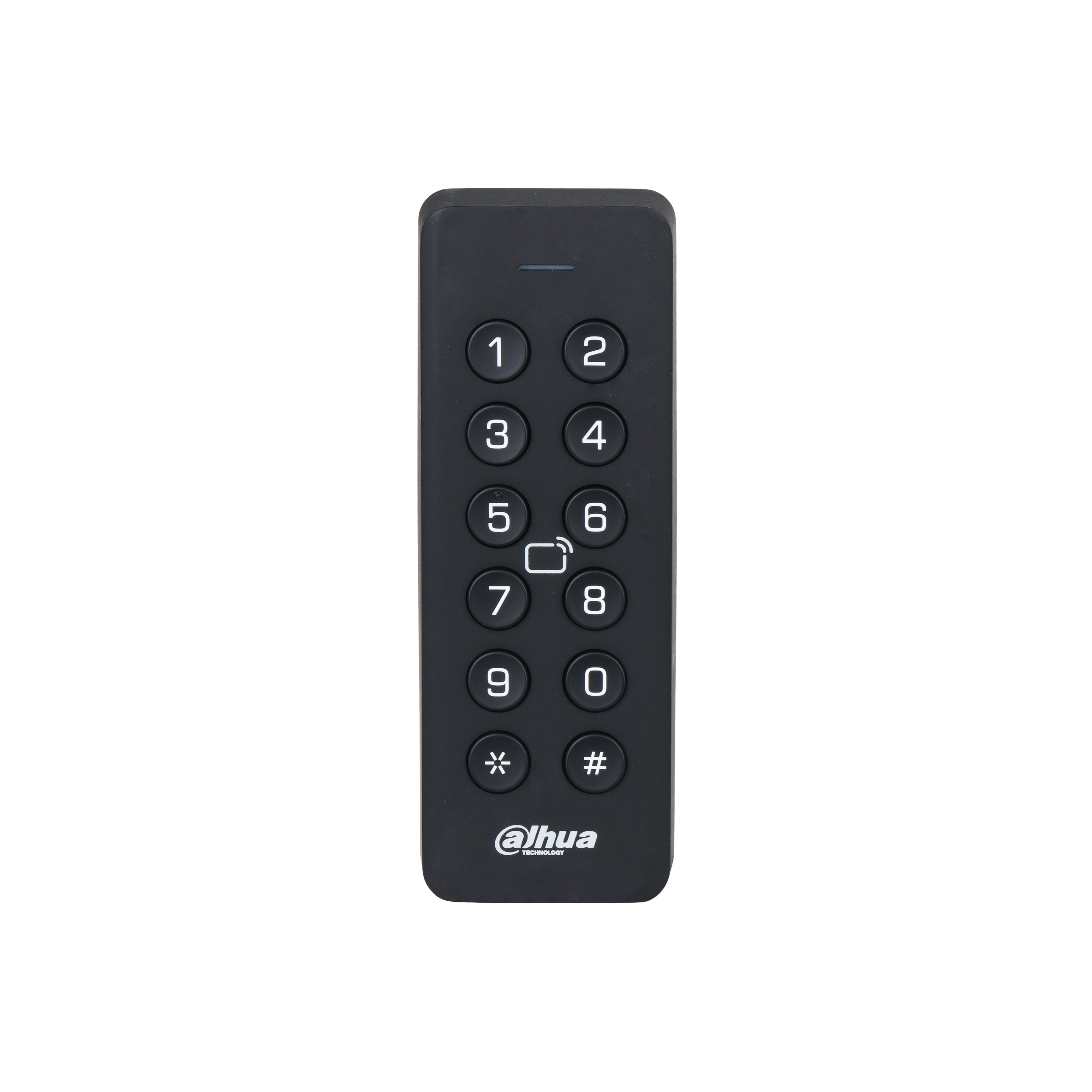

Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H

Order Code: 24706
Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H
  • Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H
  • Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H
  • Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H
    • Dahua

    Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H

    Order Code: 24706
    • Verification Type: Smartcard
    • Card Support: Mifare
    • Keypad: Yes
    • Water Proof Rating: IP66
    Stock Level: Only 2 pieces left
    Price: €54.00
    • Card unlock and password unlock
    • RS-485 and Wiegand 34 communication (Wiegand 26 can be configured)
    • Prompts using the buzzer and indicator light
    • Tamper alarm
    • Watchdog monitors and controls the device when it behaves
    • All the connection ports have overcurrent and overvoltage protection
    • IP66 rated

    System

    • OSDP Protocol : Yes
    • Button Type : Mechanical

    Basic

    • Product Type : Card reader
    • Buzzer : Yes
    • Backlight : Yes
    • Casing Material : PC + ABS

    Function

    • Unlock Mode : Card, password
    • Card Type : IC card

    Performance

    • Response Time : 0.1 s
    • Card Reading Distance : 0 cm–8 cm

    Port

    • RS-485 : 1
    • Wiegand : 1 channel output

    Alarm

    • Tamper Alarm : Yes

    General

    • Power Supply : 12 VDC, 0.5 A
    • Protection : IP66
    • Power Consumption : ≤ 0.48 W (standby), ≤ 1.2 W (working)
    • Product Dimensions : 127 mm × 46 mm × 20 mm
    • Packaging Dimensions : 139 mm × 73 mm × 48 mm
    • Operating Temperature : –30 °C to +70 °C
    • Operating Humidity : ≤ 95% (RH)
    • Operating Environment : Outdoor
    • Gross Weight : 104 g
    • Installation : Surface Mount
    File
