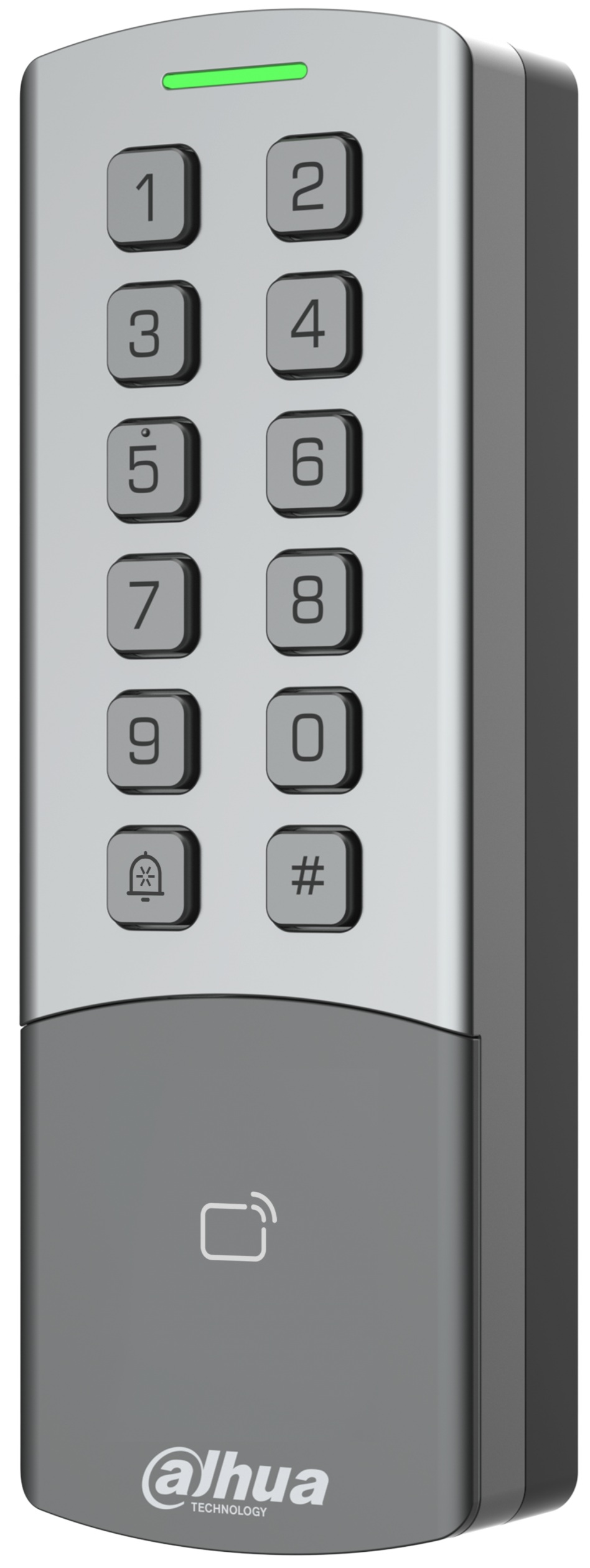

Dahua AC Standalone Keypad Supports DesFire Cards ASI1201M-MEP

Order Code: 28293

Order Code: 28293

Stock Level: High

Price: €149.₀₀

The front part of the case is made of zinc alloy and the back part is made of plastic.
Supports 10,000 users, 10,000 passwords, 10,000 cards, and 100,000 records.
Mechanical keypad with backlighting.
Supports RS-485 communication and Wiegand communication.
Buzzer and indicator light.
Supports doorbell.
Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, and excessive use of illegal card.
Cards can be issued to multiple types of users such as normal, VIP, patrol, guest, blocklist, other, and custom users.
Supplies power to 1 lock (12 V, 500 mA or lower) or 1 card reader (12 V, 200 mA or lower).
Convenient to configure through its webpage that is accessible to both computers and mobile devices.
PoE power supply.
Supports security extension modules for access control, preventing doors from being forcefully opened.
Online update.
Supports TCP/IP connection, auto registration, P2P registration and DHCP.
IP65 and IK08 rated.
Supports surface mount.
Compatible with multiple platforms such as SmartPSS lite, DSS PRO and DMSS.

System

Basic

Function

Verification Method : Card;Password;Remote
Period List : 128 periods
Holiday Period : 128 periods
Network Update : Yes
First User Unlock : Yes
Remote Verification : Yes
Restricted List/Trusted List : Yes
Peripheral Card Reader : Includes the 1-channel RS-485 card reader and 1-channel Wiegand card reader. You can easily switch between the two with just the flip of the switch.
Issuing Card by Master Card : Yes
Multi-user Authentication : Yes
Real-time Monitoring : Yes
Multi-factor Authentication : Yes
Web Configuration : Yes
Auto Registration : Yes
RFID : Card Type / ID card;M1 Card;Desfire Card (EV3，Compatible with Dahua card by default)
Modulation Type : AM
Frequency Range : 13.56 MHz and 125 kHz
Max. Transmission Power : 125 kHz: 66 dBuA/m@10 m / 13.56 MHz: 42 dBuA/m@10 m

Performance

User

User (Card) Type : Normal, VIP, patrol, guest, blocklist, and other users, custom user 1 and custom user 2

Capacity

Port

RS-485 : 1 port that can also be used by the Wiegand card reader
Wiegand : 1 port that can also be used by the RS-485 card reader. (Wiegand input is 26, 34 or 66 bits self-adaptive. Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.)
Network Port : 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Alarm Input : 2 channels
Alarm Output : 1 channel that can also be used by the doorbell output
Alarm Linkage : Yes
Doorbell : 1 channel that can also be used by the alarm output
Exit Button : 1 channel
Door Status Detection : 1 channel
Lock Control : 1 channel
Power Output Port : 1 channel (12 V, 0.5 A)

Alarm

General

Power Adapter : Optional
Power Supply : 12 VDC, 1.5 A / Standard PoE
Protection : IP65 / IK08
Power Consumption : ≤18 W
Product Dimensions : 169.0 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (H× W × D)
Packaging Dimensions : 219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (H× W × D)
Transport Package Dimensions : 585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H× W × D)
Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity : 5%–95% (RH), non-condensing
Operating Environment : Outdoor
Gross Weight : 0.65 kg (1.43 lb)
Accessory : The bracket of wall mount is included.
Installation : Wall Mount
Certifications : CE
Storage Temperature : –20 °C to +70 °C (–4 °F to + 158 °F)
Storage Humidity : 30%–75% (RH), non-condensing
