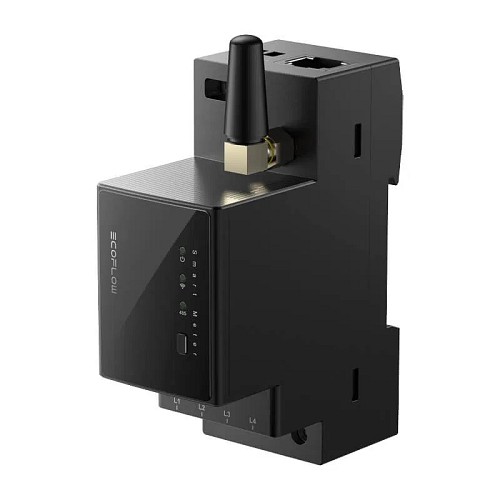

EcoFlow STREAM Smart Meter Real Time Energy Tracking & Allocation

Order Code: 28330

EcoFlow STREAM Smart Meter Real Time Energy Tracking & Allocation

Order Code: 28330

Stock Level: High

Price €129.₀₀

Promo Price(Online only) €119.₀₀

Pair with the EcoFlow STREAM Series Plug & Play Solar Plant

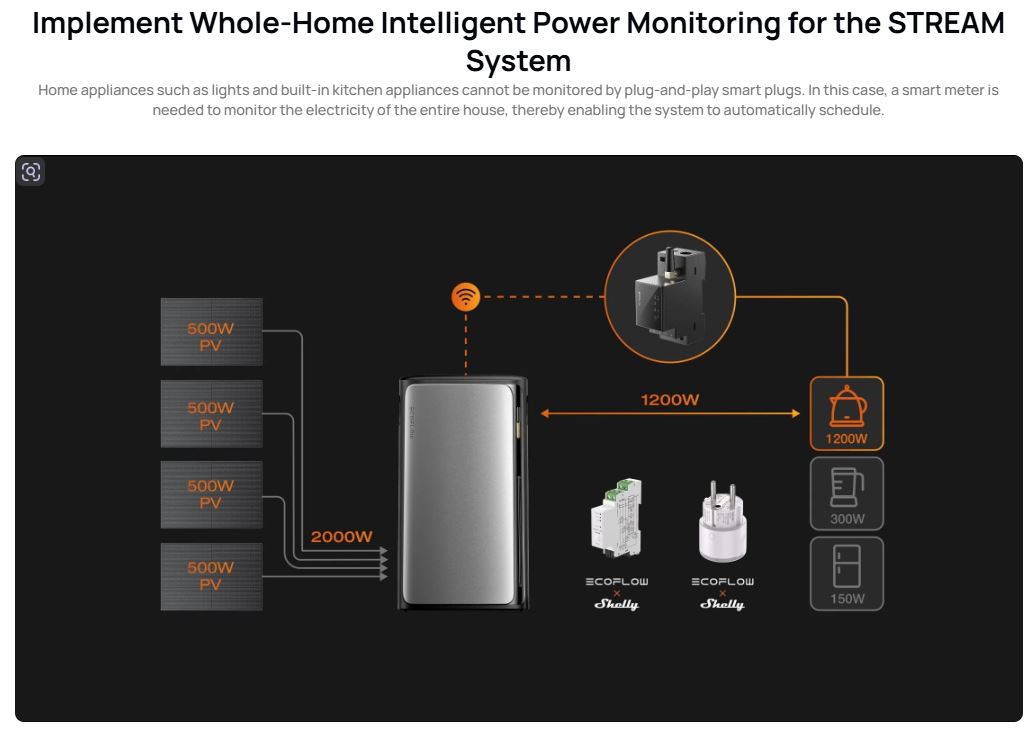

Whole-Home Intelligent Power Monitoring
Utilise household electricity offset
Maximise solar energy utilisation
Easy to Install
Works with EcoFlow OASIS

*Not compatible with EcoFlow PowerStream Microinverter

Size (HxWxD) : 94x19x69 ±0.5 mm /
Weight : 62 ±1 g
Mounting : DIN rail
Screw terminals max torque : 0.4 Nm
Conductor cross section : 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
Conductor stripped length : 6 to 7 mm
Shell material : Plastic
Ambient temperature : -20 °C to 40 °C
Humidity : 30 % to 70 % RH
Max. altitude : 2000 m
Power supply voltage AC : 100 - 260 V, 50/60 Hz
Power supply voltage DC : N/A
Power consumption : < 3 W
External protection : Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Internal-temperature sensor : Yes
Voltmeters (RMS for each phase) : 100 - 260 V
Voltmeters accuracy : ±1 %
Ammeters (RMS via CT for each phase and the Neutral) : 0-120 A
Compatible CT : CT 120A
Ammeters accuracy : ±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)
Power and energy meters : Active and apparent power / Active and apparent energy / Power factor / Fundamental active and fundamental reactive energy
Channel-to-channel calibration minimum load : 500 W per channel
No load threshold : 30 VA per channel
Measurement data storage : At least 60 days of 1 min data resolution
Data export : CSV for PQ recorded values / JSON format export through RPC
RF band : 2400 - 2495 MHz
Max. RF power : <20 dBm
Wi-Fi protocol : 802.11 b/g/n
Wi-Fi Range : Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
Bluetooth Protocol : 4.2
Bluetooth Range : Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
CPU : ESP32-D0WDQ6
Flash : 16 MB
Webhooks (URL actions) : 20 with 5 URLs per hook
Scripting : Yes
MQTT : Yes
CoAP : No
