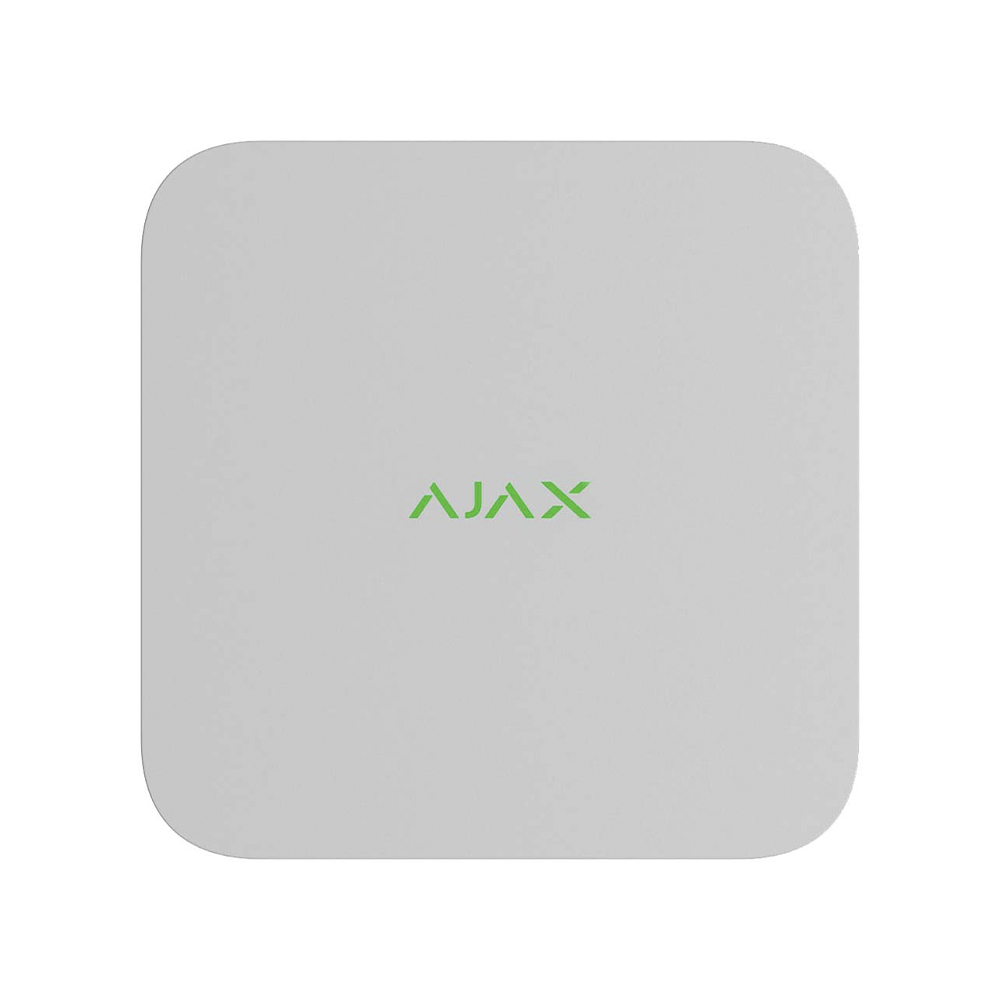

AJAX SURVEILLANCE NVR 8ch 100Mbps H.265/H.264

Order Code: 28341

Order Code: 28341

Stock Level: Good

Price: €337.₀₀

Recommendations

The device's operating voltage is 9–16 V⎓. : NVR DC is designed for indoor installation only.

Compatibility

Videostream

8-channel : With up to 4K resolution (25/30 FPS).
IP cameras : ONVIF (Profile S/T) / RTSP
Storage : hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) / HDD not included
Decoding formats : H.265 / H.264
Bandwidth : up to 100 Mbps

Communication channels

Ethernet : up to 100 Mbps
Bluetooth : BLE frequency band: 2.400–2.4835 GHz / To set up an Ethernet connection.
Radio signal power : 2.5 mW (100 mW limit)

Key features

Motion detection : NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms
In-app video management system : Videowall that combines images from all connected cameras / Event filters / Timeline with smooth preview
Visual verification of Ajax alarms : NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps
Privacy : Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop

Power supply

Without an installed jumper on the PSU board : 8–16 V⎓, up to 4 A
8 V⎓ — turn-on threshold when the voltage rises / 6.5 V⎓ — turn-off threshold when the voltage drops
With an installed jumper on the PSU board : 12.1–16 V⎓, up to 4 A / 12.1 V⎓ — turn-on threshold when the voltage rises / 10.35 V⎓ — turn-off threshold when the voltage drops
Power consumption : up to 24 W
Clock battery : CR2032 battery, 3 V / Only to power the system clock.

Sabotage protection
