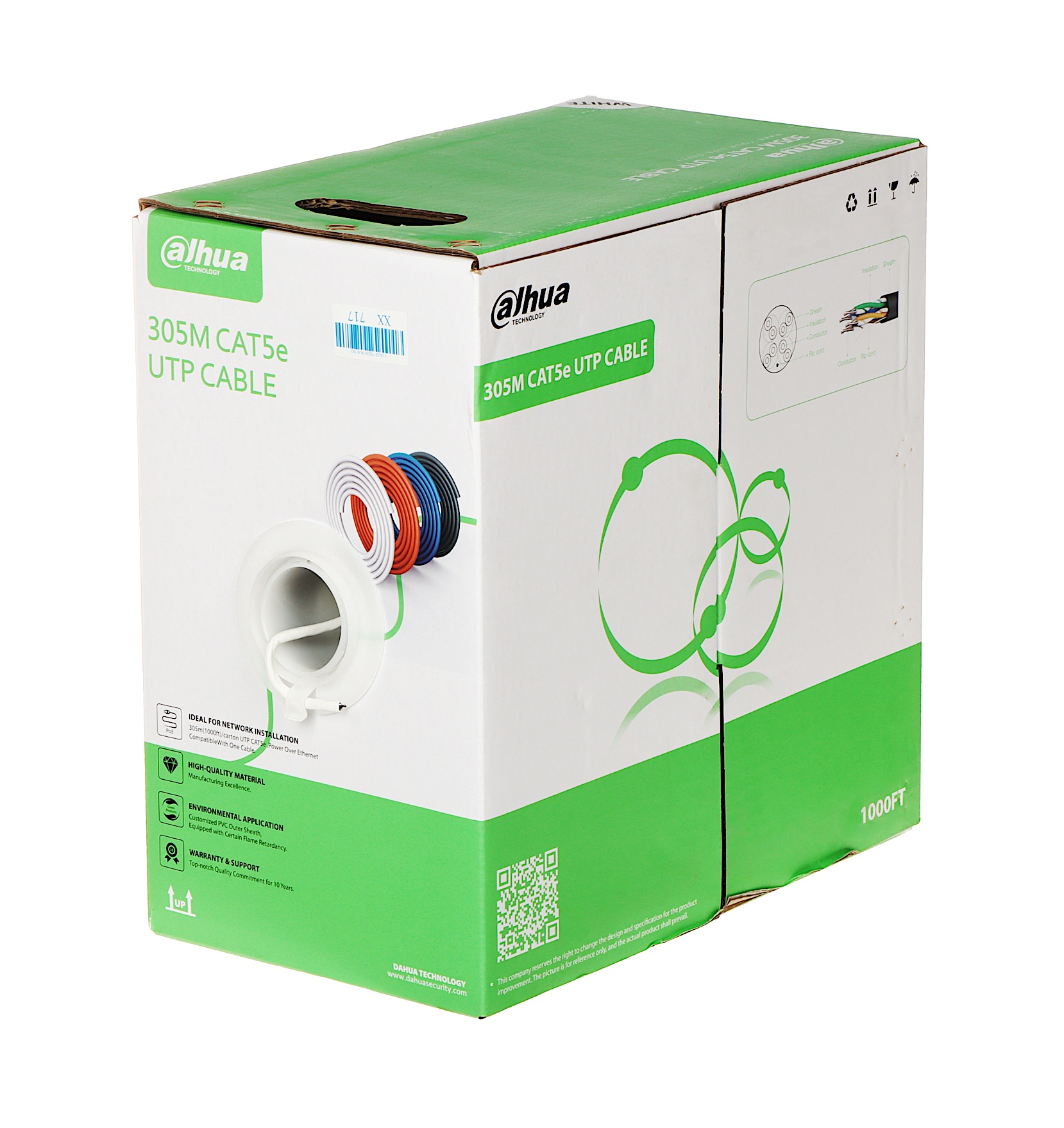

Dahua CAT5e Cable CCA 305m Orange DH-PFM922I-5EUN-C

Order Code: 28439

Stock Level: High

Price €89.₀₀

Promo Price(Online only) €69.₀₀

Conductor

Insulation

Material : HDPE
Min. Average Thickness : 0.18 mm
Diameter : 0.90 mm ± 0.06 mm
Color : Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Rip Cord

Sheath

Electrical

Mechanical

Environmental

Shrinkage of Insulation : ≤5%
Color Migration Resistance of Insulation : No migration
Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
Low Temperature Bending Test : No cracking after the test
Heat Shock Test : No cracking after the test
Operation Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

Packaging

Cable Length : 305.0 m ± 2 m (1000.66 ft ± 6.56 ft)
Net Weight : 6.2 kg ± 0.5 kg (13.67 lb ± 1.1 lb)
Gross Weight : 7.0 kg ± 0.5 kg (15.43 lb ± 1.1 lb)
Inner Carton Dimensions : 364 mm × 216 mm × 364 mm (14.33" × 8.5" × 14.33") (L × W × H)
Packaging Dimensions : 447 mm × 382 mm × 386 mm (17.6" × 15.04" × 15.2") (L × W × H)
Packaging Method : 305.0 m (1000.66 ft) per carton, and 2 cartons per transport package

Compliance
