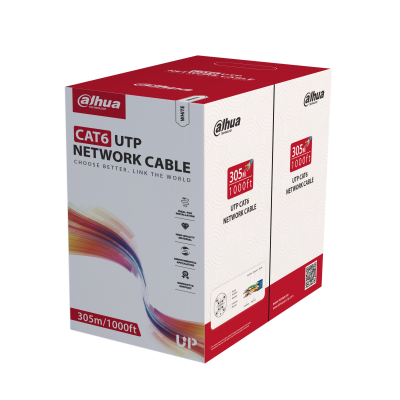

Dahua CAT6 OFC Cable 0.57mm 305m White DH-PFM920I-6U-C

Order Code: 28454

Stock Level: High

Price: €248.₀₀

Conductor

Insulation

Material : HDPE
Min. Average Thickness : 0.21 mm (0.0083")
Diameter : 1.0 mm ± 0.1 mm (0.04" ± 0.0004")
Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

Separator

Sheath

Electrical

Transmission

Mechanical

Environmental

Shrinkage of Insulation : ≤5%
Color Migration Resistance of Insulation : No migration
Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥125%
Low Temperature Bending Test : No cracking after the test
Heat Shock Test : No cracking after the test
Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

Packaging

Cable Length : 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)
Packaging Method : 305 m (1,000 ft) a carton, one carton with 2 inner cartons
Packaging Dimensions : 416 mm × 412 mm × 220 mm (16.38" × 16.22" × 8.66") (L × W × H)
Transport Package Dimensions : 467 mm × 437 mm × 441 mm (18.39" × 17.20" × 17.36") (L × W × H)
Net Weight : 12.4 kg ± 0.5 kg (27.34 lb ± 1.10 lb)
Gross Weight : 13.4 kg ± 0.5 kg (29.54 lb ± 1.10 lb)

Compliance
