Conductor

• Material : Oxygen free copper (99.97% purity)
• Diameter : 0.57 mm ± 0.01 mm (0.0224" ± 0.0004")
• Wire Gauge : 23 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.21 mm (0.0083")
• Diameter : 1.12 mm ± 0.1 mm (0.04" ± 0.0004")
• Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 500D

Drain Wire

• Material : Tinned copper
• Specification : 0.50 mm ± 0.01 mm (0.0004" × 0.02")

Separator

• Material : PE
• Specification : Translucent 5.2 mm × 0.6 mm (0.21" × 0.02")

Wrapping Tape

• Material : Polyester tape (transparent)
• Thickness : 0.025 mm × 25 mm (0.001" × 0.98")

Outer Shield

• Material : Aluminum foil
• Specification : 0.06 mm × 25 mm (0.002" × 0.98")

Sheath

• Material : PVC
• Min. Average Thickness : 0.55 mm (0.0216")
• Diameter : 7.3 mm ± 0.4 mm (0.2874" ± 0.0157")
• Color : Gray

Electrical

• Max. DC Resistance of a Single Conductor : 7.35 Ω / 100 m (328.08 ft)
• Min. Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near-end Crosstalk : ≥33.10 dB / 100 m @ 250 MHz
• Max. Attenuation : 32.8 dB / 100 m @ 250 MHz
• Return Loss : ≥17.3 dB / 100 m @ 250 MHz

Mechanical

• Tensile Strength : Sheath ≥13.5 MPa, Insulation ≥16 MPa
• Elongation at Break : Sheath ≥150%, Insulation ≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥10%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥125%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
• Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

• Vertical Flame Test : Complies with IEC 60332-1-2

Packaging

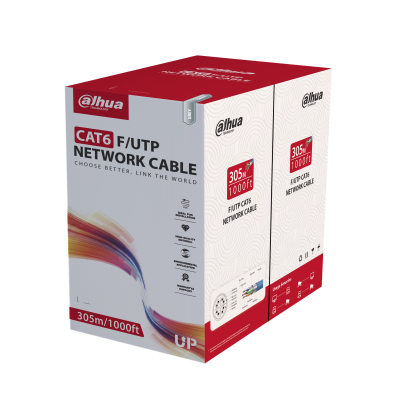

• Cable Length : 305.0 m ± 2 m (1000.66 ft ± 6.56 ft)
• Packaging Method : 305 m (1000 ft) a carton, one carton with 2 inner cartons
• Packaging Dimensions : 414 mm × 321 mm × 425 mm (16.3" × 12.64" × 16.73") (L × W × H)
• Net Weight : 19.3 kg ± 0.6 kg (42.55 lb ± 1.32 lb)
• Gross Weight : 20.3 kg ± 0.5 kg (44.75 lb ± 1.32 lb)

Compliance

• Executive Standards : ISO/IEC 11801, IEC 61156
• Certifications : CPR Eca
• Flame-retardant Standard : EN50575
