Brateck

Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483

Order Code: 29142

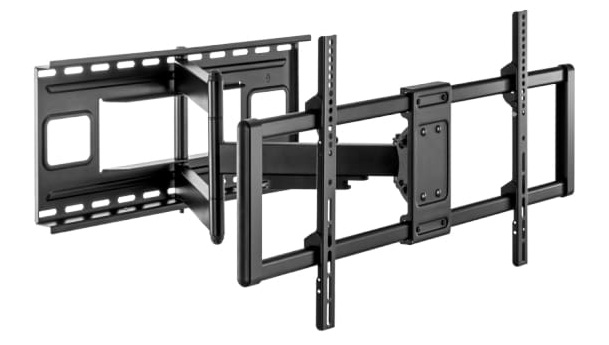

Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483
  • Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483
  • Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483
  • Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483
  • Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483
    • Brateck

    Brateck TV Mount 80x40 Turn 2-Arm 72cm 80kg LPA77-483

    Order Code: 29142
    • Function: Turn
    • Max Vesa: 800x400
    • Max. Weight: 80kg
    • Arm Extension: 72cm
    Stock Level: High
    Price: €149.99

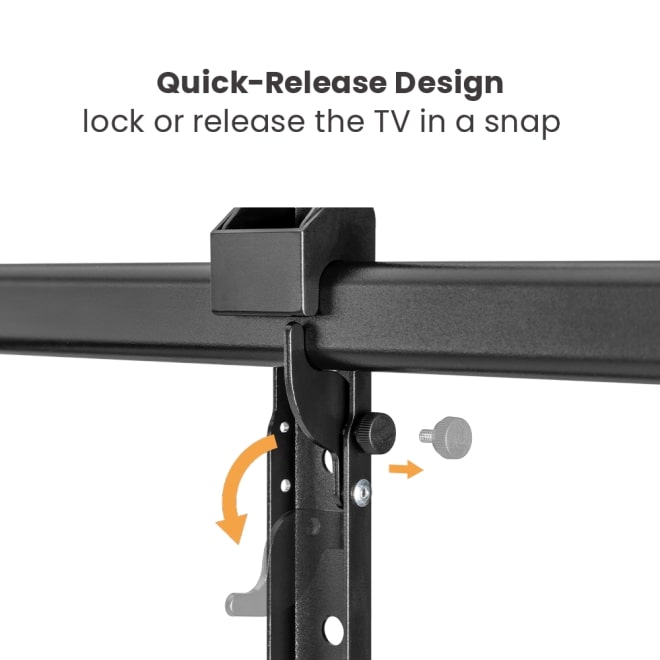

    Heavy-duty arms provide strong support for larger and heavier TVs up to 80kg,it basically holds all types of TVs from 43”-90” . TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

    • Product Category: Full-motion TV Wall Mount
    • Rank: Standard
    • Material: Steel
    • Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
    • Pipe Size: 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)
    • Surface Finish: Powder Coating
    • Color: Fine Texture Black
    • Dimensions: 723x910x430mm (28.5"x35.8"x16.9")
    • Fit Screen Size: 43"-95"
    • Fit Curved TV: Yes
    • Mounting Hole Pattern: VESA Only
    • VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
    • Max. Mounting Hole: 810x410
    • Weight Capacity: 80kg (176lbs)
    • Strength Tested: 4 Times Approved
    • Profile: 82~723mm (3.2"~28.5")
    • Tilt Range: +5°~-15°
    • Swivel Range: +90°~-90°
    • Screen Level: +5°~-5°
    • Screen Freely Tilting: Yes
    • Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
    • Panel Type: Detachable Panel
    • Wall Plate Type: Fixed Wall Plate
    • Direction Indicator: Yes
    • Cable Management: Yes
    • Bubble Level: Hook-on Bubble Level(Included in Components Package)
    • Accessory Kit Package: Compartment Polybag
    • Product Category: Full-motion TV Wall Mount
    • Rank: Standard
    • Material: Steel
    • Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
    • Pipe Size: 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)
    • Surface Finish: Powder Coating
    • Color: Fine Texture Black
    • Dimensions: 723x910x430mm (28.5"x35.8"x16.9")
    • Fit Screen Size: 43"-95"
    • Fit Curved TV: Yes
    • Mounting Hole Pattern: VESA Only
    • VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
    • Max. Mounting Hole: 810x410
    • Weight Capacity: 80kg (176lbs)
    • Strength Tested: 4 Times Approved
    • Profile: 82~723mm (3.2"~28.5")
    • Tilt Range: +5°~-15°
    • Swivel Range: +90°~-90°
    • Screen Level: +5°~-5°
    • Screen Freely Tilting: Yes
    • Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
    • Panel Type: Detachable Panel
    • Wall Plate Type: Fixed Wall Plate
    • Direction Indicator: Yes
    • Cable Management: Yes
    • Bubble Level: Hook-on Bubble Level(Included in Components Package)
    • Accessory Kit Package: Compartment Polybag
