AJAX BASELINE Keypad Outdoor White

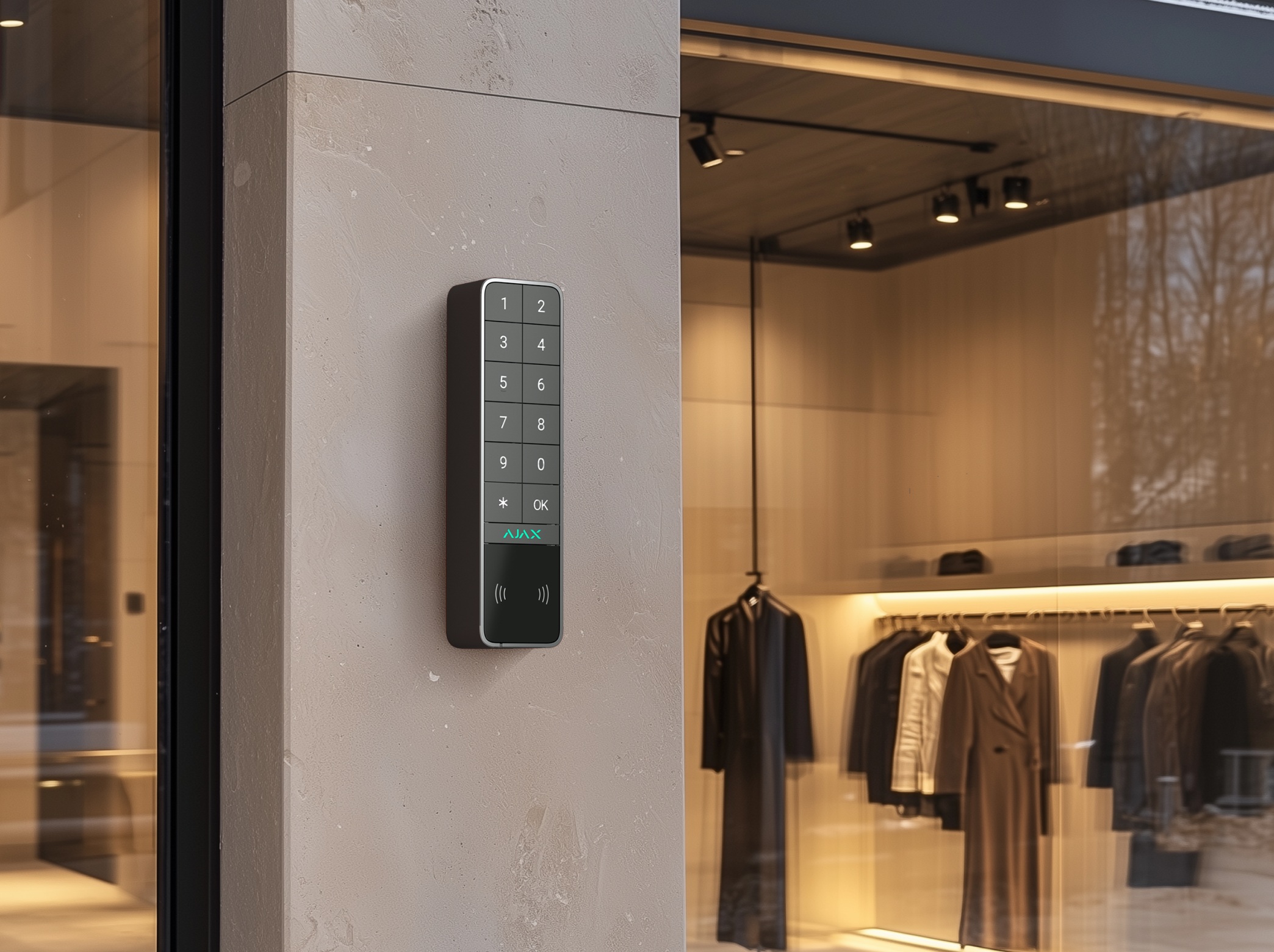

KeyPad Outdoor Jeweller is a wireless keypad designed to manage Ajax systems. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for both outdoor and indoor use
The keypad operates in the Ajax system and exchanges data with the hub using the secure Jeweller radio communication protocol
KeyPad Outdoor Jeweller features large mechanical buttons, a reader for contactless authorization, a built-in buzzer, and LED indicators. The keypad is used to control security modes and automation devices and to notify of system events via sound and LED indication
KeyPad Outdoor Jeweller features primary and secondary operating modes. You can set up one keypad function for each mode and switch between modes with a long press of the OK button

Key features

Frequency bands

Maximum effective radiated power (ERP)

Radio signal modulation

Radio communication range

up to 1,700 m / Between the device and a hub (or a range extender) in an open space

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key

Frequency hopping

Keypad functions

Authentication methods

Access codes

Contactless access

Contactless authentication via smartphone

A smartphone with an Ajax app installed and Bluetooth Low Energy (BLE) support can be used for authentication instead of Tag or Pass. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and later.

Arming without entering a code

When enabled, this feature allows users to arm the facility without entering a code or presenting an access device.

Group security management

Users can change the security mode of groups they have access to directly from the keypad.

Authorization confirmation with a passcode

This feature activates two-factor authentication. When enabled, users must first present an access device (Pass, Tag, or smartphone) and then enter a passcode to confirm authorization.

Function button

Automation device control

Starting entry delay

Activates an entry delay, enabling users to disarm the facility using the main keypad.

Indication of malfunctions and security mode

When enabled, the keypad uses LED indicators to show the current security mode, as well as detector malfunctions or loss of communication with the hub. A built-in buzzer notifies of alarms, opening doors, and entry/exit delays.

Recommendations
